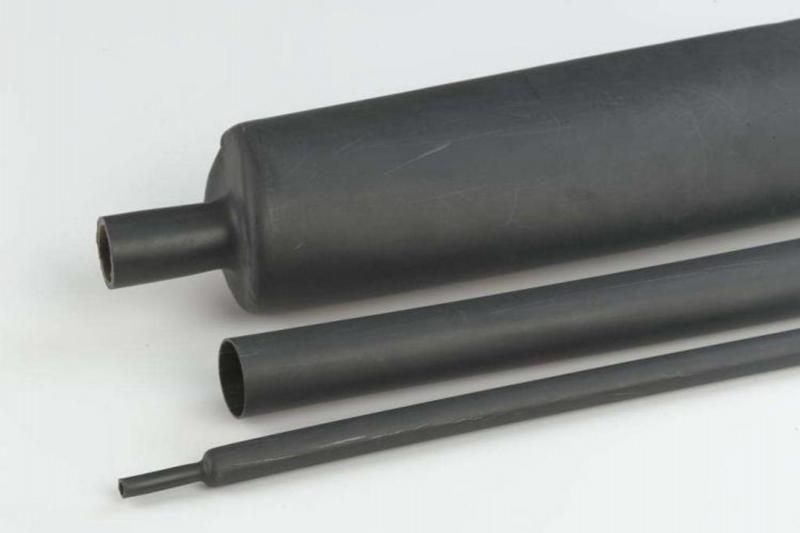

PE Single Wall Heat Shrink Tubing

Min. shrink temperature: ≥70℃
Min. full recovery temperature: ≥120℃
Working temperature: -55℃-125℃
Environmental protection standard: RoHS
Shrink ratio: 2:1
Color: black, red, yellow, white, green, blue and other ten colors

The PE Single Wall Heat Shrink Tubing features a low shrink temperature and outstanding mechanical strength. It should be noted, however, it should only be used for insulation, and cannot be used in humid environments.

Application

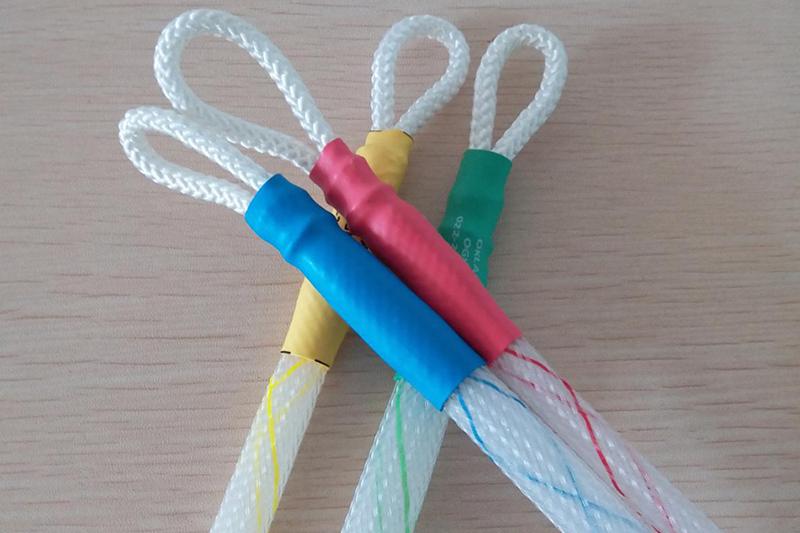

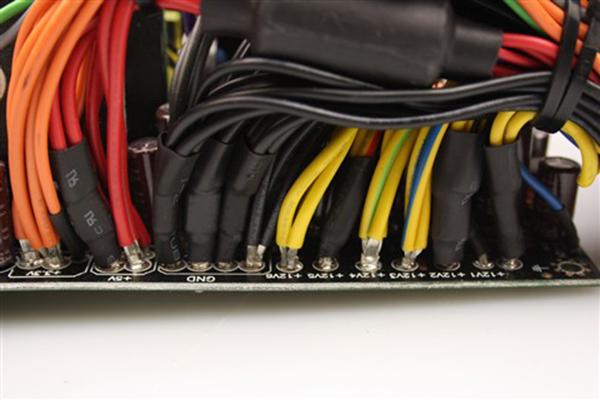

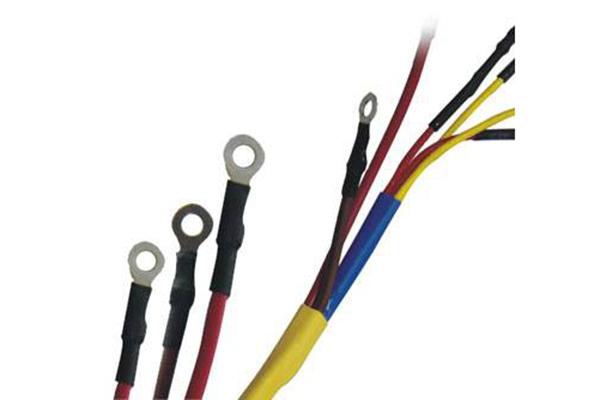

The PE Single Wall Heat Shrink Tubing is widely used in electronics, communications, automobiles, ships, aircraft manufacturing and other fields.

Optional specification
Specification Inner diameter
mm 		Size after full shrinkage(mm) Standard package m/reel
Inner diameter Thickness
Φ1.0 CB 1.40±0.20 ≤0.65 0.20 ± 0.10 200
Φ1.5 CB 1.90±0.20 ≤0.85 0.20 ± 0.10 200
Φ2.0 CB 2.40±0.20 ≤1.00 0.22 ± 0.10 200
Φ2.5 CB 2.90±0.20 ≤1.30 0.25 ± 0.10 200
Φ3.0 CB 3.40±0.20 ≤1.50 0.28 ± 0.10 200
Φ3.5 CB 3.90±0.20 ≤1.80 0.28 ± 0.10 200
Φ4.0 CB 4.40±0.20 ≤2.00 0.30 ± 0.10 200
Φ4.5 CB 4.90±0.20 ≤2.30 0.30 ± 0.10 100
Φ5.0 CB 5.50±0.20 ≤2.50 0.32 ± 0.10 100
Φ6.0 CB 6.50±0.20 ≤3.00 0.32 ± 0.10 100
Φ7.0 CB 7.50±0.30 ≤3.50 0.32 ± 0.10 100
Φ8.0 CB 8.50±0.30 ≤4.00 0.32 ± 0.10 100
Φ9.0 CB 9.50±0.30 ≤4.50 0.35 ± 0.10 100
Φ10 CB 10.50±0.30 ≤5.00 0.35 ± 0.10 100
Φ11 CB 11.50±0.30 ≤5.50 0.40 ± 0.10 100
Φ12 CB 12.50±0.30 ≤6.00 0.40 ± 0.10 100
Φ13 CB 13.50±0.30 ≤6.50 0.40 ± 0.10 100
Φ14 CB 14.50±0.30 ≤7.00 0.40 ± 0.10 100
Φ15 CB 15.50±0.40 ≤7.50 0.40 ± 0.10 100
Φ16 CB 16.50±0.40 ≤8.00 0.40 ± 0.10 100
Φ17 CB 17.50±0.40 ≤8.50 0.40 ± 0.10 100
Φ18 CB 18.50±0.40 ≤9.00 0.42 ± 0.10 100
Φ20 CB 20.50±0.50 ≤10.0 0.45 ± 0.10 100
Φ22 CB 22.50±0.50 ≤11.0 0.45 ± 0.10 100
Φ25 CB 25.50±0.50 ≤12.5 0.45 ± 0.10 50
Φ28 CB 28.50±0.50 ≤14.0 0.45 ± 0.10 50

Note: Please call or email us for other specifications.
